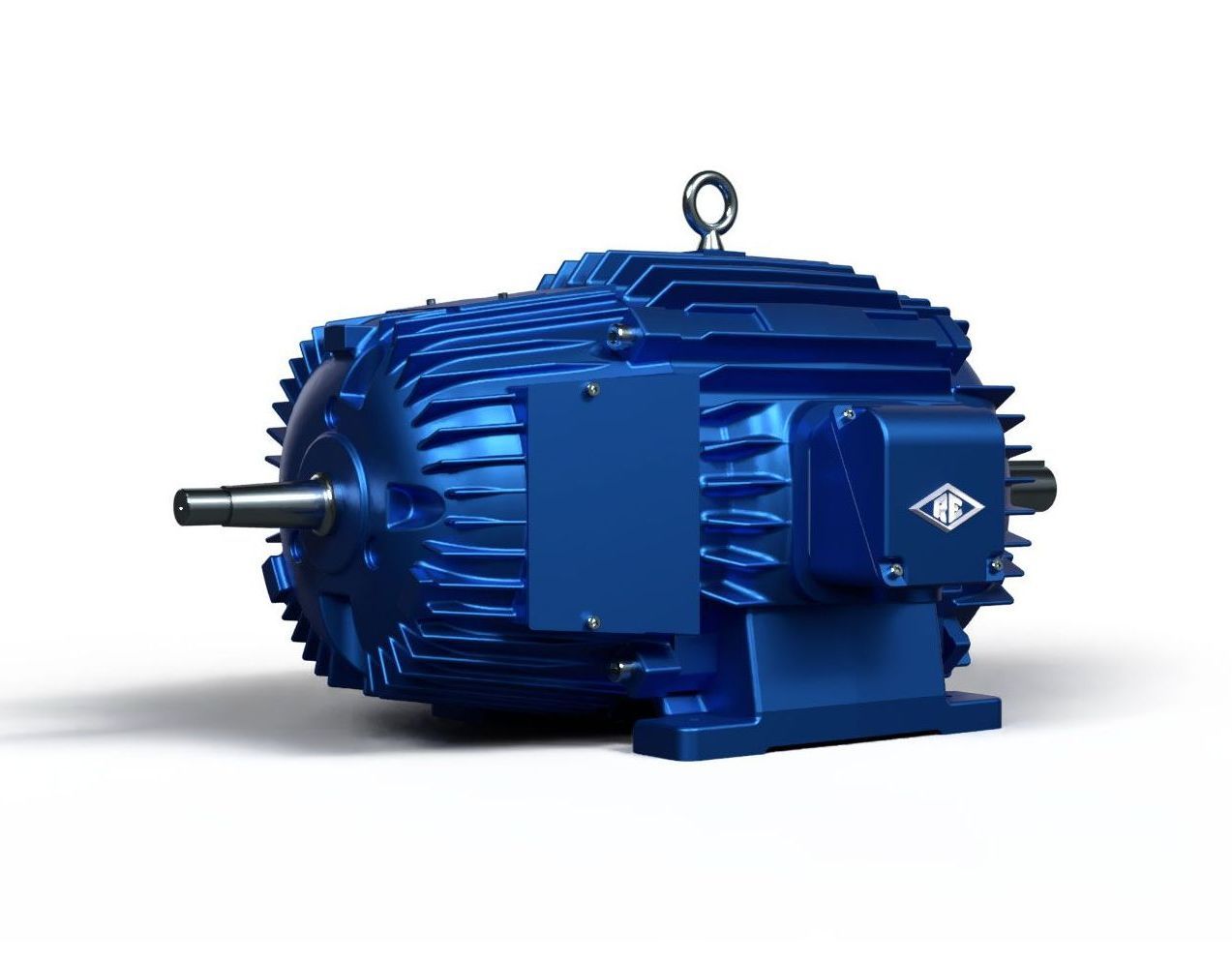

WOUND ROTOR MOTORS

Reuland manufactures a complete line of continuous and intermittent duty wound rotor motors (also known as slip ring motors). Reuland's wound rotor motors provide adjustable speed, starting current, and starting torque.



Continuous duty wound rotor motors are typically either open drip proof or totally enclosed non-ventilated. Intermittent duty wound motors are widely used on crane and hoist applications and are typically 15, 30, and 60-minute duty ratings and provided as open drip proof or totally enclosed non-ventilated. Special custom designed 120-minute or continuous duty wound rotor motors in totally enclosed fan cooled, or auxiliary fan cooled enclosure are also available for refuse or scrap handling cranes.


ELECTRICAL FEATURES

Design Type AC Induction, Wound rotor
Power 1/10 – 250 HP
Speed 1800, 1200, 900, 720, and 600 rpm
Voltage Up to 600 volts
Phase 3-Phase
Frequency 60 Hz
Characteristics 225% minimum Breakdown Torque (BDT) for continuous duty; 275% minimum Breakdown Torque (BDT) for intermittent duty.
Stator M-19, M-36, or M-45 Electrical steel laminations. Other lamination grades are available upon request. Hand-wound to ensure balanced and symmetrical windings.
Rotor M-19, M-36, or M-45 Electrical steel laminations. Other lamination grades are available upon request. Wound rotor construction.

MECHANICAL FEATURES

Frame NEMA frames 182 through 449. Custom frames are also available, consult factory.
Construction Cast iron or Cast aluminum frame and end bells. Consult factory for Stainless Steel construction and/or custom design.
Enclosures Fan Cooled (Totally Enclosed); Auxiliary Fan Cooled (Totally Enclosed); Non-Ventilated (Totally Enclosed); Open Drip Proof (ODP).
Bearings Heavy-duty Steel ball, or Roller bearings to suit specific applications.
Bearing Lubrication Pre-Lubricated Sealed or Shielded; Re-Greasable Open
Balance NEMA Standard.
Insulation Class B, F, H and VPI.
Mounting Foot or Footless; Precision Bracket Mounting; Conventional C or D Flange.
Accessories Temperature Sensors, Brakes, Vibration Mounts and Sensors.

Industries Served

Crane & Hoist

Moveable Structures


Applications

Hoists

Pumps

Conveyors

Bridges

Bending Rolls

Printing Presses

Pulverizers
