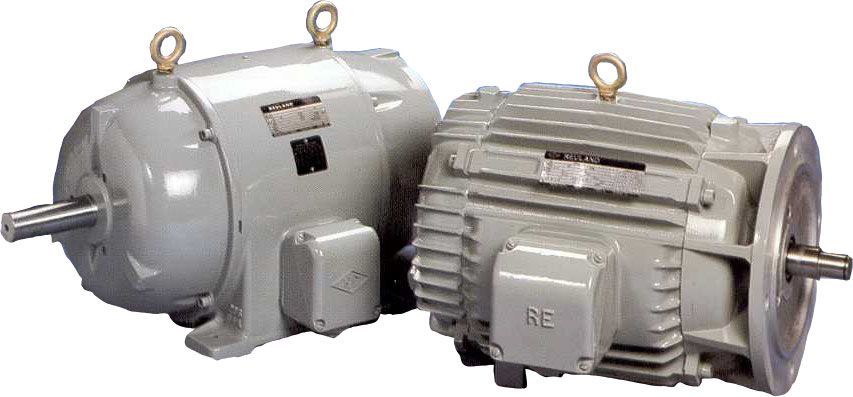

HAZARDOUS DUTY MOTORS

Reuland's Hazardous Duty motors are built for use in hazardous locations categorized as Class I & II, Division II. Division II locations consist of environments where flammable liquids or gases could be unusually present. Among other features, our Hazardous Duty motors contain no spark-producing components or brushes, an explosion-proof terminal box, hermetically sealed normally closed thermal switches and a pressurized chamber design in which positive pressure is maintained by pumping clean air inside the motor to keep potentially flammable gases out.



Reuland's AC Synchronous Permanent Magnet motors are CSA certified for Class I Division 2 hazardous locations. Any of Reuland's motor products can be successfully adapted for the hazardous environment by employing our hazardous duty protections.

Available Motor Products: Single-Speed Motors; Multi–Speed Motors; SS-100 Inverter / Vector Duty Motors; High Speed Liquid Cooled Motors; High Speed Air Cooled Motors; AC Synchronous Motors; NEMA Torque Designs: A, B, C, D (5-8% Slip) and 8-13% Slip

ELECTRICAL FEATURES

Design Type AC Induction; Single-Speed; Multi-Speed; Permanent Magnet; Reluctance
Power Up to 300 HP
Speed 3600, 1800, 1200, 900, 720, 600, 450, 300 rpm; Multi-Speed; Variable Speed
Voltage Up to 600 volts
Phase 3-Phase
Frequency 60 Hz, up to 2000 Hz with Inverter
Stator M-19, M-36, or M-45 Electrical steel laminations. Other lamination grades are available upon request. Hand-wound to ensure balanced and symmetrical windings.
Rotor M-19, M-36, or M-45 Electrical steel laminations. Other lamination grades are available upon request. Die-cast aluminum, copper, or copper alloy rotor construction.

MECHANICAL FEATURES

Frame NEMA frames 56 through 449. Custom frames also available, consult factory.
Construction Cast iron or Cast aluminum frame and end bells. Consult factory for Stainless Steel construction and/or custom design.
Enclosures Totally Enclosed
Bearings Heavy-duty Steel ball, Ceramic ball, or Roller bearings to suit specific applications.
Bearing Lubrication Pre-Lubricated Sealed or Shielded; Re-Greasable Open
Balance Precision and/or NEMA Standard
Insulation Class B, F, H, and VPI
Mounting Foot or Footless; Precision Bracket Mounting; Conventional C or D Flange; Special and Custom Flanges.
Accessories Encoders, Resolvers, Temperature Sensors, Vibration Mounts and Sensors.
