VERTICAL PUMP MOTORS

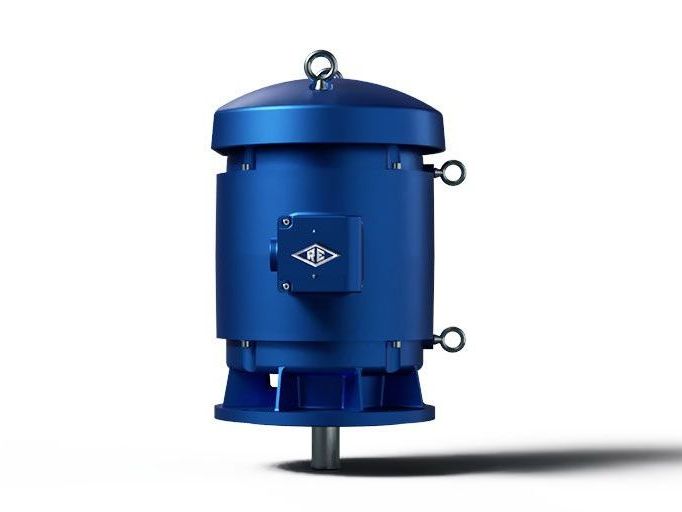

Reuland's Vertical Pump motors are specifically designed for water pumping systems. Two types of Vertical Pump motors are offered: Vertical Hollow-shaft and Vertical Solid-shaft.

Originally designed to meet the exacting requirements of deep well turbine pumping for irrigation systems, Reuland's Vertical Hollow-shaft motors are now used throughout agriculture, municipal, and manufacturing industries. Solid-shaft Vertical pump motors are available in solid shaft design with NEMA "P" base and drip covers and class "F" insulation as standard. Other classes of insulation are available including epoxy encapsulation. Custom shafts and/or flanges are also available.


ELECTRICAL FEATURES

Design Type AC Induction; Single or Variable Speed
Power Up to 75 HP
Speed 3600, 1800, 1200, 900 rpm; Variable Speed
Voltage Up to 600 volts
Phase 3-Phase
Frequency 60 Hz, up to 133 Hz with Inverter
Stator M-19, M-36, or M-45 Electrical steel laminations. Other lamination grades are available upon request. Hand-wound to ensure balanced and symmetrical windings.
Rotor M-19, M-36, or M-45 Electrical steel laminations. Other lamination grades are available upon request. Die-cast aluminum, copper, or copper alloy rotor construction.

MECHANICAL FEATURES

Frame NEMA frames 56 through 365, Reuland Waferthin frames 800 through 1400LL. Custom frames also available, consult factory.
Construction Cast iron or Cast aluminum frame and end bells. Consult factory for Stainless Steel construction and/or custom design.
Enclosures Totally Enclosed Fan Cooled (TEFC); Totally Enclosed Non-Ventilated (TENV); Open Drip Proof (ODP)
Bearings Heavy-duty Steel ball, Ceramic ball, or Roller bearings to suit specific applications.
Bearing Lubrication Pre-Lubricated Sealed or Shielded; Re-Greasable Open
Balance Precision and/or NEMA Standard
Insulation Class F, H, and VPI
Mounting Foot or Footless; Conventional C & D Flange; Special and Custom Flanges.
Accessories Temperature Sensors, Vibration Mounts and Sensors.

Industries Served

Infrastructure



Applications

Pumping systems
