ELEVATOR DUTY MOTORS

Reuland's Elevator duty motors come in all different sizes, shapes, and features. These motors are offered as single-speed, two-speed, or variable-speed VVVF motors. Traditionally a DC machine, AC variable speed is today's state-of-the-art prime mover for most elevators. Low slip, closed loop inverter/vector duty, VVVF motors are available from 5 to 200 horsepower in 4, 6, 8, or 10 pole configurations. Reuland's unique electrical and mechanical designs are ideally suited for the demanding low noise levels and positioning requirements required for this application.

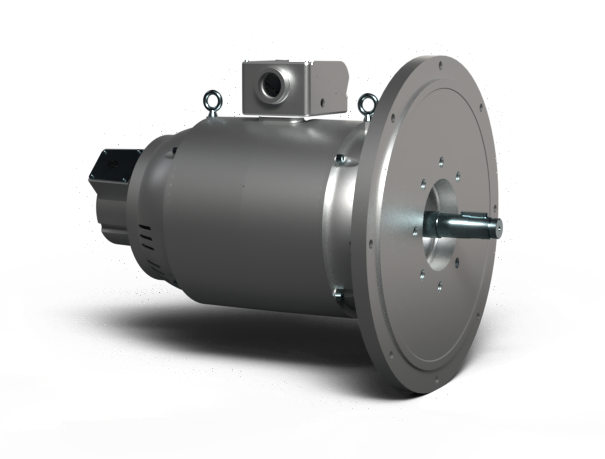

New construction and modernization (retrofitting existing old DC installations) for traction machines is where Reuland's expertise lies. Many older DC machines utilized special flange mounts and single-bearing motor designs. Reuland has developed a/c "drop-in" replacements for all styles and manufacturers' machines such as Westinghouse, Otis, Titan, Northern, Armor, and Dover. Our bolt-up designs eliminate the need for costly adapters and modifications to standard flange mount motors.

ELECTRICAL FEATURES

Design Type AC Induction; 1 or 2-Speed; Special Variable Speed (VVVF)
Power 5 – 200 HP
Speed 3600, 1800, 1200, 900, 720 rpm; multi-speed, Variable Speed; 1000:1 Constant Torque Open Loop; 2000:1 Constant Torque Closed Loop
Voltage Up to 600 volts
Phase 3-Phase
Frequency 60 Hz, up to 133 Hz with Inverter
Stator M-19, M-36, or M-45 Electrical steel laminations. Other lamination grades are available upon request. Hand-wound to ensure balanced and symmetrical windings.
Rotor M-19, M-36, or M-45 Electrical steel laminations. Other lamination grades are available upon request. Die-cast aluminum, wound rotor, copper, or copper alloy rotor construction.

MECHANICAL FEATURES

Frame NEMA frames 56 through 449. Custom frames also available, consult factory.
Construction Cast iron or Cast aluminum frame and end bells. Consult factory for Stainless Steel construction and/or custom design.
Enclosures Totally Enclosed Fan Cooled (TEFC); Totally Enclosed Non-Ventilated (TENV); Open Drip Proof (ODP)
Bearings Heavy-duty Steel ball, Ceramic ball, or Roller bearings to suit specific applications.
Bearing Lubrication Pre-Lubricated Sealed or Shielded; Re-Greasable Open
Balance Precision and/or NEMA Standard
Insulation Class B, F, H, and VPI
Mounting Foot or Footless; Precision Bracket Mounting; Conventional C or D Flange; Special and Custom Flanges.
Accessories Encoders, Resolvers, Temperature Sensors, Brakes, Vibration Mounts and Sensors.

Industries Served

Elevators & Crane

Applications

Commercial Elevators

Residential Elevators

Escalators
