CONSTANT TENSION WINDER MOTORS

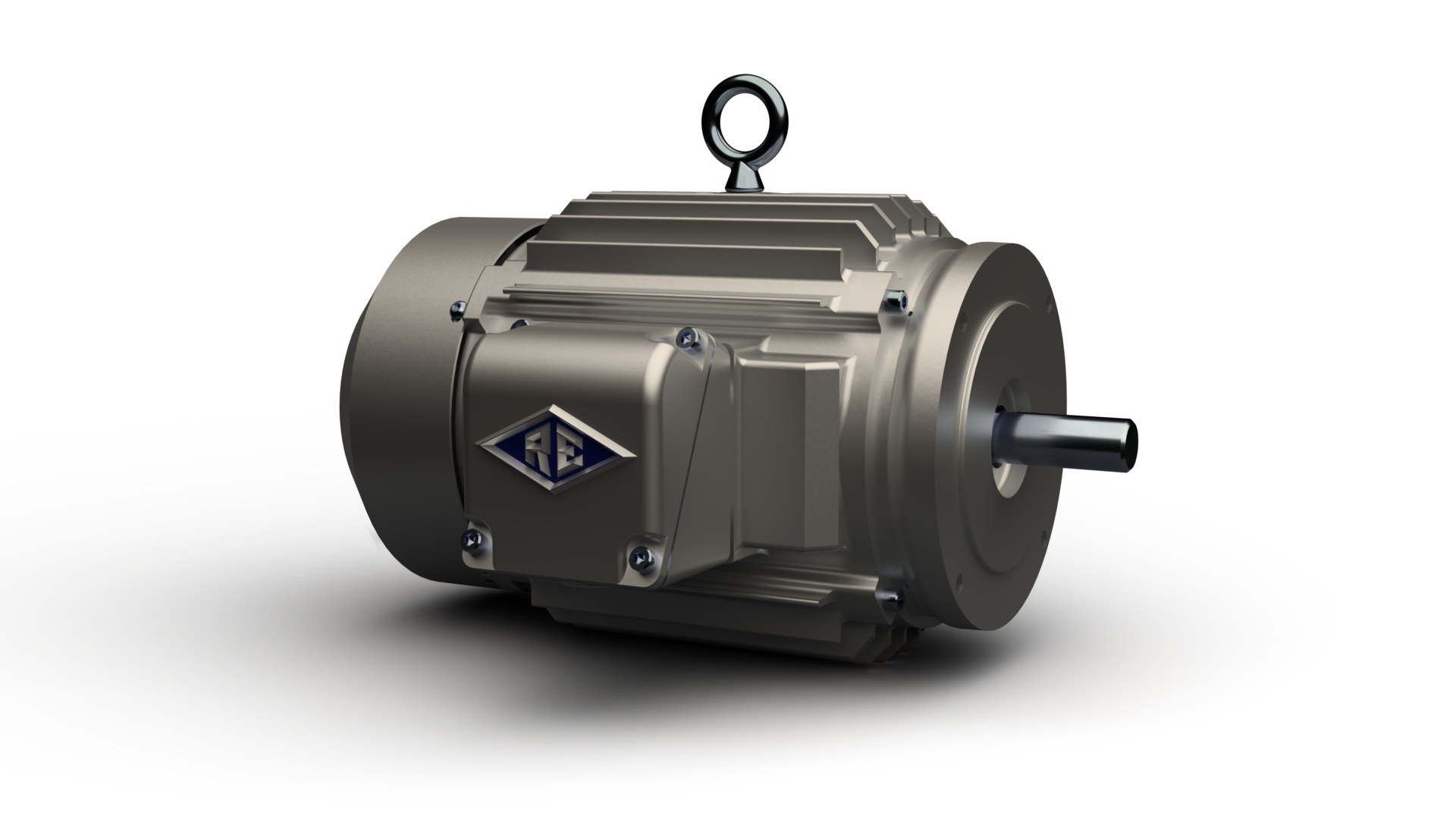

Reuland's Constant Tension Winder motors are widely used in the manufacturing of paper, film, wires, etc, where the product is often unwound, coated, and rewound. For winding applications, the product on drums or reels must be maintained at constant tension and constant linear speed.

Reuland's Constant Tension Winder motors are available in stall torque ranging from 1 to 2400 in-lb, as continuous duty, and in totally enclosed auxiliary fan cooled (A-TEFC), drip proof auxiliary fan cooled (A-DPFC), and totally enclosed non-ventilated (TENV) enclosure.


ELECTRICAL FEATURES

Design Type AC Induction; Constant Torque
Stall Torque Up to 2160 in-lb
Speed 1800, 1200, 900, 600, 300 rpm
Voltage Up to 600 volts
Phase 3-Phase
Frequency 60 Hz
Stator M-19, M-36, or M-45 Electrical steel laminations. Other lamination grades are available upon request. Hand-wound to ensure balanced and symmetrical windings.
Rotor M-19, M-36, or M-45 Electrical steel laminations. Other lamination grades are available upon request. Copper, or copper alloy rotor construction.

MECHANICAL FEATURES

Frame NEMA frames 56 through 365, U & T frame configurations. Custom frames are also available, consult factory.
Construction Cast iron or Cast aluminum frame and end bells. Consult factory for Stainless Steel construction and/or custom design.
Enclosures Drip Proof/Open Auxiliary Fan Cooled (A-DPFC / DFAV / A-VENT); Totally Enclosed Auxiliary Fan Cooled (A-TEFC / A-TEFV / TEAV); Totally Enclosed Non-Ventilated (TENV)
Bearings Heavy-duty Steel ball, or Roller bearings to suit specific applications.
Bearing Lubrication Pre-Lubricated Sealed or Shielded; Re-Greasable Open
Balance NEMA Standard
Insulation Class F, H and VPI.
Mounting Foot or Footless; Precision Bracket Mounting; Conventional C or D Flange; Metric DIN Flanges.
Accessories Temperature Sensors, Brakes, Vibration Mounts and Sensors.

Industries Served

Textile

Paper & film

Industrial




Applications

Winder

Dynamic Brake

Valve Actuators

Indexing

Clamping
