HIGH SPEED: DRIP PROOF AIR COOLED AND OPEN DRIP PROOF MOTORS

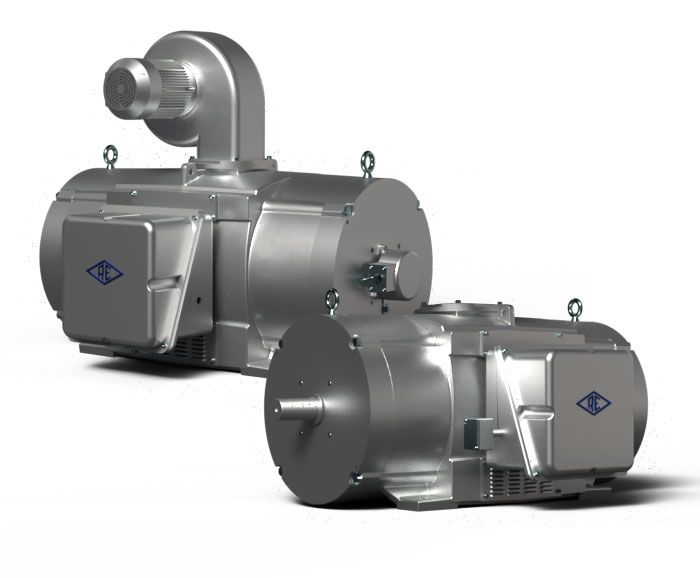

Reuland's Drip Proof Fan Cooled (DPFC) motors offer comparatively higher power than their Totally Enclosed counterparts and are suitable for indoor and outdoor applications where the motor is protected from the extreme elements of the environment. Reuland's High Speed Drip Proof motors are available with a shaft mounted fan (DPFC), Auxiliary Blower (A-DPFC)  or as Open Drip Proof (ODP).


Electrical Features

Design Type AC Induction; Variable Speed
Power 1/10 – 450 HP
Speed Up to 30,000 rpm
Voltage Up to 600 volts
Phase 3-Phase
Frequency Up to 2000 Hz
Volts/Herts Range Per Customer Requirements
Stator M-19 or M-36 Electrical steel laminations. Other lamination grades are available upon request. Hand-wound to ensure balanced and symmetrical windings.
Rotor M-19 or M-36 Electrical steel laminations. Other lamination grades are available upon request. Die-cast aluminum, copper, or copper alloy rotor construction. Encapsulated rotor design for ultra-high speeds.

Mechanical Features

Frame Reuland frame 315 through 532 for small motors; NEMA frame 56 through 449 for large motors; IEC frame 90 through 315; square frames and custom frames are also available, consult factory.
Construction Cast iron or Cast aluminum frame and end bells. Consult factory for Stainless Steel construction and/or custom design.
Enclosures Fan Cooled (Drip Proof); Auxiliary Fan Cooled (Drip Proof); Open (Drip Proof); Air-Purged Provisions
Bearings High-Precision, ABEC-7, Steel ball, Ceramic ball or Roller bearings to suit specific applications.
Bearing Lubrication Pre-Lubricated Sealed or Shielded; Re-Greasable Open, Oil Jet
Balance Precision and/or NEMA Standard.
Insulation Class B, F, H and VPI.
Mounting Foot or Footless; Precision Bracket Mounting; Conventional C or D Flange; Metric DIN Flanges.
Accessories Encoders, Resolvers, Temperature Sensors, Brakes, Vibration Mounts and Sensors.

Industries Served

Automotive

Machine Tools

Aerospace

Infrastructure

Textile

many more

Applications

High Speed

Test Stands and Dynos

Compressor and Pumps

Spindles

Turbine Starters

many more
