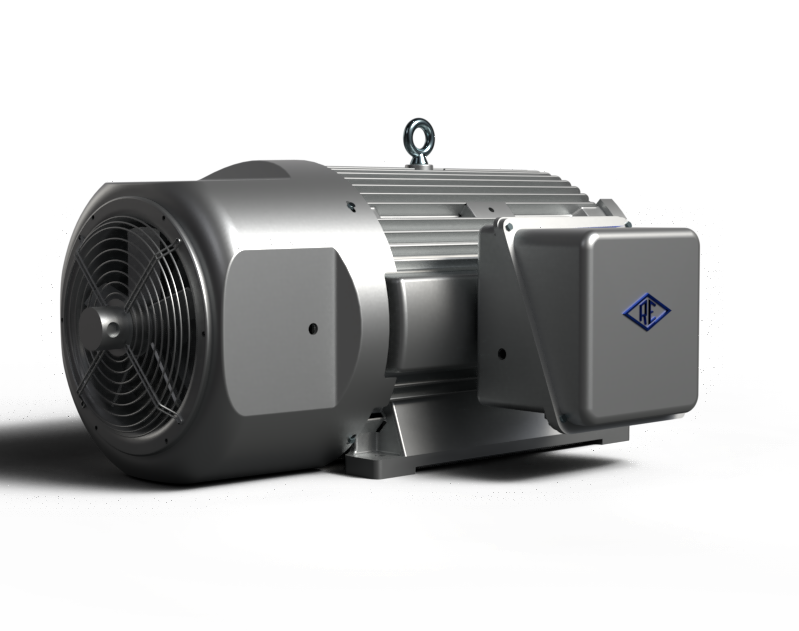

NUCLEAR RATED MOTORS

Reuland's Nuclear rated motors are designed and built around our customer's nuclear requirements. They are widely used in the crane and hoist industry involved with the transportation of radioactive material as well as the removal of radioactive waste. Our nuclear motors can withstand a radiation exposure of 3.5x10^9 rads for the life of the unit. The design consists of a proprietary insulation system capable of handling a maximum lifetime dose of 3.5x10^9 rads. Some of the design features are cast iron frame and end bells, stainless steel shaft, metal tags, and no Teflon or silicone rubber.



Any of Reuland's products including motors and brakes can be successfully adapted to meet the nuclear dosage requirements.


Electrical Features

Available Motor products Single-Speed Motors; Multi–Speed Motors; Wound Rotor Motors; SS-100 Inverter / Vector Duty Motors; High Speed Liquid Cooled Motors; High Speed Air Cooled Motors; Partial Motors: Stator/Rotor Sets; NEMA Torque Designs: A,B,C, D (5-8% Slip) and 8-13% Slip
Design Type AC Induction; Single-Speed; Multi-Speed; Wound Rotor
Power Up to 300 HP
Speed 3600, 1800, 1200, 900, 720, 600, 450, 300 rpm; Multi-Speed; Variable Speed
Voltage Up to 600 volts
Phase 3-Phase
Frequency 60 Hz, up to 2000 Hz with Inverter
Stator M-19, M-36, or M-45 Electrical steel laminations. Other lamination grades are available upon request. Hand-wound to ensure balanced and symmetrical windings.
Rotor M-19, M-36, or M-45 Electrical steel laminations. Other lamination grades are available upon request. Die-cast aluminum, copper, or copper alloy rotor construction.

Mechanical Features

Frame NEMA frames 56 through 449. Custom frames also available, consult factory.
Construction Cast iron frame and end bells. Consult factory for Stainless Steel construction and/or custom design.
Enclosures Totally Enclosed
Bearings Heavy-duty Steel ball, Ceramic ball, or Roller bearings to suit specific applications.
Bearing Lubrication Pre-Lubricated Sealed or Shielded; Re-Greasable Open
Balance Precision and/or NEMA Standard
Insulation Class B, F, H, and VPI
Mounting Foot or Footless; Precision Bracket Mounting; Conventional C or D Flange; Special and Custom Flanges.
Accessories Encoders, Resolvers, Temperature Sensors, Brakes, Vibration Mounts and Sensors.

Industries Served

Military

Marine & Coast Guard

Crane & Hoist



Applications

Winches

Hydraulic Pumps

Fans

Cranes

Hoist
