Test Stand Motors

PRODUCT FAMILIES

TEST STAND MOTORS

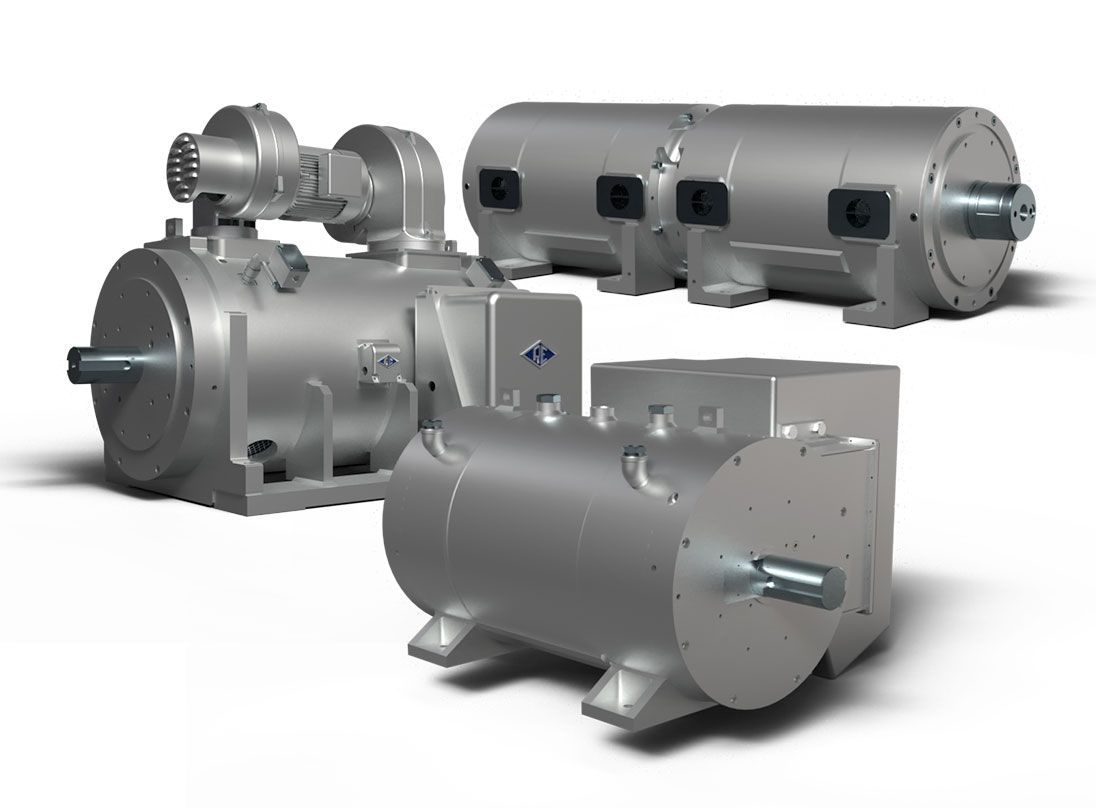

A World leader in high speed motor applications, Reuland is the predominant supplier of Test Stand motors for the automotive industry. Our high power density asynchronous motor designs deliver up to 1,500 HP and 50,000 rpm. Our Test Stand motors are available in both air cooled and liquid cooled enclosures and deliver maximum power and speed performance, low noise and vibration, and extremely low inertia values in an asynchronous design. With our design, analysis, and manufacturing capabilities, and years of field experience relative to rotating machinery integration, Reuland provides the ultimate advantage on your high-performance Test Stand equipment.


Electrical Features

Available Motor Products High Speed Liquid Cooled Motors; High Speed Air Cooled Motors
Design Type AC Induction; Variable Speed
Power Up to 1500 HP
Speed Up to 50,000 rpm *Higher speeds available - consult factory
Voltage Up to 600 volts
Phase 3-Phase
Frequency Up to 2000 Hz
Configuration 2-pole or 4-pole
Stator M-19 or M-36 Electrical steel laminations. Other lamination grades are available upon request. Hand-wound to ensure balanced and symmetrical windings.
Rotor M-19 or M-36 Electrical steel laminations. Other lamination grades are available upon request. Die-cast aluminum, copper, or copper alloy rotor construction. Encapsulated rotor design for ultra-high speeds.

Mechanical Features

Frame NEMA frame 56 through 449; IEC frame 90 through 315; Reuland liquid cooled frames 140S thru 580L; Square frames and custom frames are also available, consult factory.
Construction Cast iron or Heavy-duty steel frame and end bells. Consult factory for Stainless Steel construction and/or custom design.
Enclosures Totally Enclosed Fan Cooled (TEFC); Totally Enclosed Auxiliary Fan Cooled (A-TEFC); Totally Enclosed Non-Ventilated (TENV); Open Drip Proof (ODP), Open Drip Proof Fan Cooled (DPFC); Open Drip Proof Auxiliary Fan Cooled (A-DPFC); Water Cooled (TEWC); Oil Cooled (TELCW)
Bearings High-Precision, ABEC-7, Steel ball, Ceramic ball or Roller bearings to suit specific applications.
Bearing Lubrication Pre-Lubricated Sealed or Shielded; Re-Greasable Open, Oil Jet; Oil Cooled
Balance Precision.
Insulation Super Class H insulation with Vacuum Impregnation (VPI).
Mounting Footed; Precision Bracket Mounting; Conventional C or D Flange; Metric DIN Flanges.
Accessories Encoders, Resolvers, Temperature Sensors, Brakes, Vibration Mounts and Sensors.

Industries Served

Automotive

Aerospace

Military


Applications

High Speed

Test Stands and Dynos

Spindles
