HIGH SPEED: WATER COOLED MOTORS

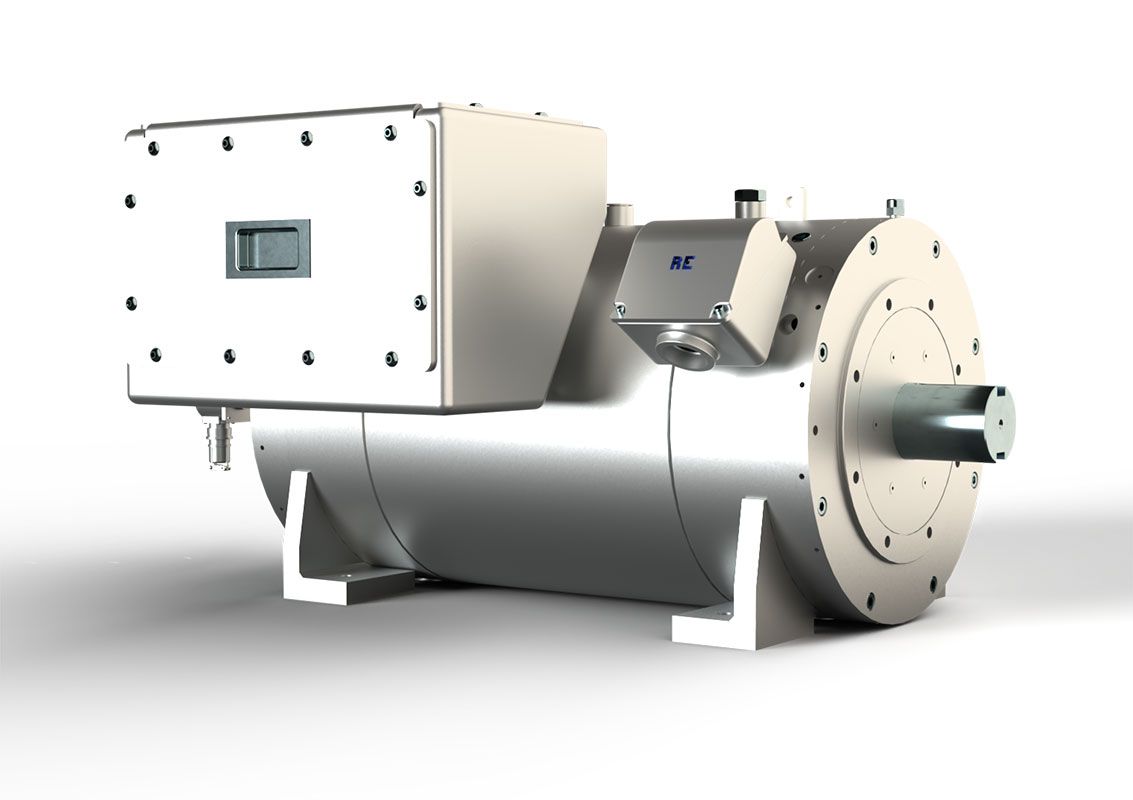

Reuland's Water Cooled motors (TEWC) boast a high power density ratio and offer many advantages such as low noise, smaller size, lower weight, and longer life. At the same time, water cooling provides an efficient way of removing heat from the motor.  A water re-circulating system generally provides cooling water to the motor while maintaining an optimal water temperature and flow rate.

Electrical Features

Design Type AC Induction; Variable Speed
Power Up to 750 HP
Speed Up to 50,000 rpm *Higher speeds available - consult factory
Voltage Up to 600 volts
Phase 3-Phase
Frequency Up to 2000 Hz
Configuration 2-pole or 4-pole
Stator M-19 or M-36 Electrical steel laminations. Other lamination grades are available upon request. Hand-wound to ensure balanced and symmetrical windings.
Rotor M-19 or M-36 Electrical steel laminations. Other lamination grades are available upon request. Die-cast aluminum, copper, or copper alloy rotor construction. Encapsulated rotor design for ultra-high speeds.

Mechanical Features

Frame Reuland liquid cooled frames 140S thru 580L. Other custom frames and special constructions are available upon request.
Construction Heavy-duty steel frame and end bells. Consult factory for Stainless Steel construction and/or custom design.
Enclosures Water Cooled
Bearings High-Precision, ABEC-7, Steel ball, Ceramic ball or Roller bearings to suit specific applications.
Bearing Lubrication Pre-Lubricated Sealed or Shielded; Re-Greasable Open, Oil Jet
Balance Precision.
Insulation Class H insulation with Vacuum Impregnation (VPI).
Mounting Footed; Precision Bracket Mounting; Conventional C or D Flange; Metric DIN Flanges.
Accessories Encoders, Resolvers, Temperature Sensors, Brakes, Vibration Mounts and Sensors.

Industries Served

Automotive

Machine Tools

Aerospace

Energy Recovery

many more

Applications

High Speed

Test Stands and Dynos

Compressor and Pumps

Spindles

Turbine Starters

many more
