WOODWORKING MOTORS

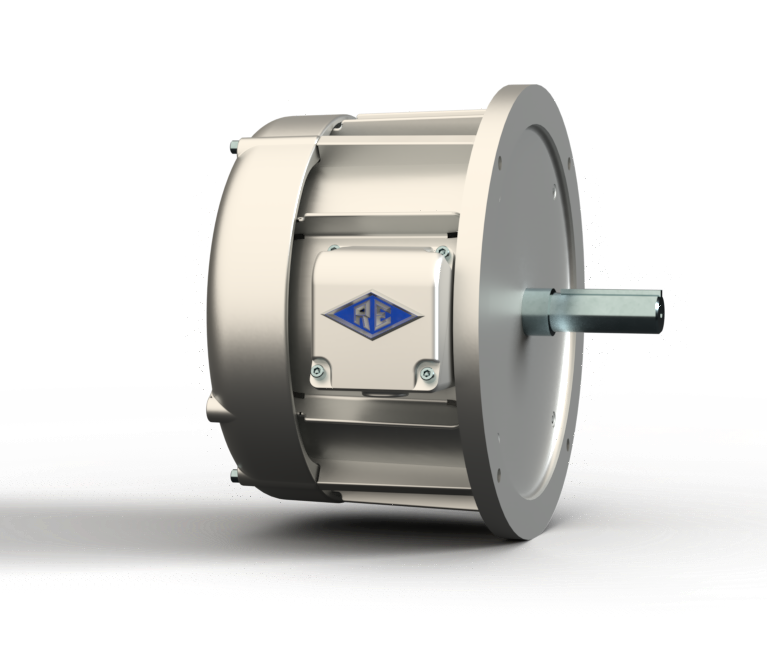

Reuland offers a line of woodworking motors for table saws, lathes, drilling, grinding, and other equipment used in woodworking and metal shops.

These motors are available in fractional through 75 horsepower with TEFC enclosure, single and 3-phase, continuous and intermittent duty, and seal-tight features to protect against dust and wood/metal shavings.

Design Type AC Induction
Power 1/10 – 75 HP
Speed 3600, 1800, and 1200 rpm
Voltage Up to 240 volts (1-phase) & Up to 600 volts (3-phase)
Phase 1-Phase, Capacitor start/run; 3-Phase
Frequency 60 Hz
Stator M-19, M-36, or M-45 Electrical steel laminations. Other lamination grades are available upon request. Hand-wound to ensure balanced and symmetrical windings.
Rotor M-19, M-36, or M-45 Electrical steel laminations. Other lamination grades are available upon request. Die-cast aluminum, wound rotor, copper, or copper alloy rotor construction.

Frame NEMA frames 56 through 365. Custom frames also available, consult factory.
Construction Cast iron or Cast aluminum frame and end bells. Consult factory for custom design.
Enclosures Totally Enclosed Fan Cooled (TEFC); Totally Enclosed Non-Ventilated (TENV); Seal-tight features including sealed bearings and sealed joints for dust protection.
Bearings Heavy-duty Steel ball, or Roller bearings to suit specific applications.
Bearing Lubrication Pre-Lubricated Sealed or Shielded; Re-Greasable Open
Balance Precision and/or NEMA Standard.
Insulation Class B, F, H and VPI.
Mounting Foot or Footless; Precision Bracket Mounting; Conventional C or D Flange; Metric DIN Flanges.
Accessories Temperature Sensors, Brakes, Vibration Mounts and Sensors.

Industries Served

Woodworking

Metalworking

Applications

Lathes

Grinders

Planers

Table Saws
