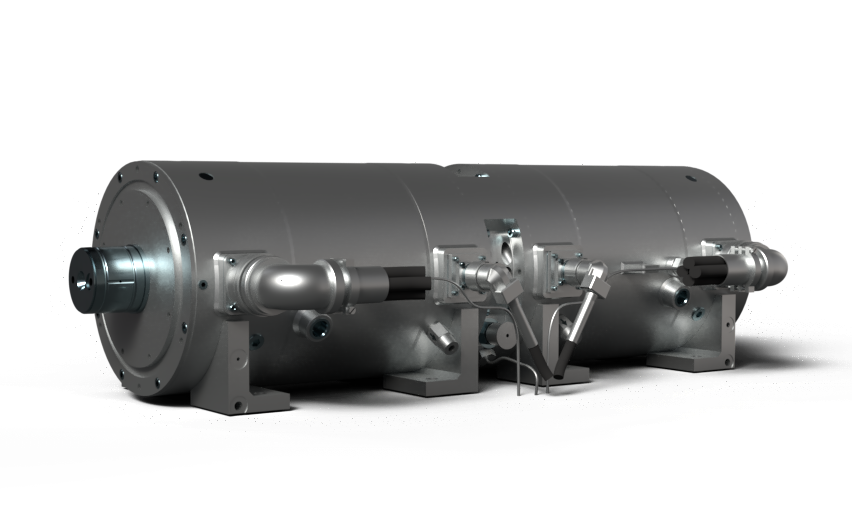

HIGH SPEED: OIL COOLED SUPER QUIET LOW INERTIA MOTORS

For applications demanding very low motor inertia, noise, and vibration, Reuland offers a line of Oil Cooled Super Quiet Low Inertia motors that are unique in the industry and unmatched in performance by any of our competitors. With an AC induction type design optimized for low motor noise and vibration, a highly specialized super low rotor inertia design, and effective oil cooling, Reuland's Oil Cooled Super Quiet Low Oil Cooled motors are the solution to the Automotive Industry's requirements of extremely low motor inertia matching that of an internal combustion engine.


Electrical Features

Design Type AC Induction; Variable Speed
Power Up to 1500 HP
Speed Up to 20,000 rpm
Voltage Up to 600 volts
Phase 3-Phase
Frequency Up to 2000 Hz
Configuration 4-pole
Stator M-19 or M-36 Electrical steel laminations. Other lamination grades are available upon request. Hand-wound to ensure balanced and symmetrical windings.
Rotor M-19 or M-36 Electrical steel laminations. Other lamination grades are available upon request. Super low inertia with die-cast aluminum, copper, or copper alloy rotor construction. Encapsulated rotor design for ultra-high speeds.

Mechanical Features

Frame Reuland liquid cooled frames 210 thru 440 in XL (extra-long), TLS (tandem long single motor configuration), and TLD (Tandem long dual motor configuration). Other custom frames and special constructions are available upon request.
Construction Heavy-duty steel frame and end bells. Consult factory for Stainless Steel construction and/or custom design.
Enclosures Oil Cooled
Bearings High-Precision, ABEC-7, Steel ball, Ceramic ball or Roller bearings to suit specific applications.
Bearing Lubrication Oil Cooled
Balance Precision.
Insulation Super Class H insulation with Vacuum Impregnation (VPI).
Mounting Footed; Precision Bracket Mounting; Conventional C or D Flange; Metric DIN Flanges.
Accessories Encoders, Resolvers, Temperature Sensors, Brakes, Vibration Mounts and Sensors.

Industries Served

Automotive

Machine Tools

Aerospace

Energy Recovery

many more


Applications

High Speed

Test Stands and Dynos

Compressor and Pumps

Spindles

Turbine Starters

many more
