TEXTILE MOTORS

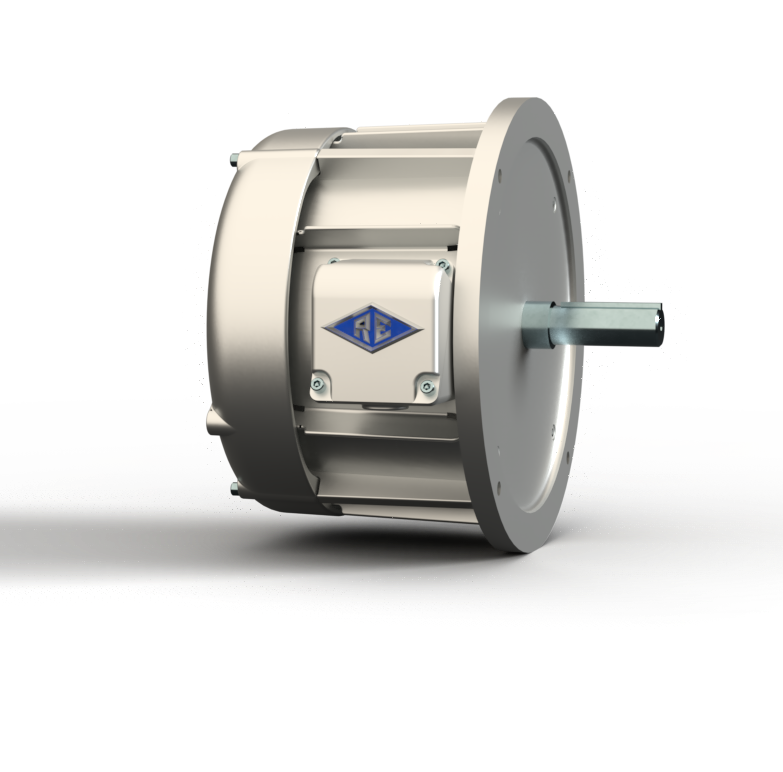

Textile motors are specifically designed for operating in heavy fiber and lint environments. Special care is taken to assure all castings and external rotating components are smooth and free of areas, which could trap lint and impede the cooling of the motor. The motors are painted with multiple coats of heavy epoxy enamel for a smooth, clean surface. Reuland CSA certified AC Synchronous Permanent Magnet motors and Torque motors are widely used in the textile industry where line synchronization and constant spool tension are essential.



Utilization of textile motors is on textile machines, metering pumps, and air handling equipment within the manufacturing facility.


Electrical Features

Design Type AC Induction; Permanent Magnet; Synchronous Reluctance; Single-Speed; Variable Speed
Power Up to 75 HP
Speed 3600, 1800, 1200, 900, 720, 600, 300 rpm; variable speed
Voltage Up to 600 volts
Phase 3-Phase
Frequency 60 Hz, Up to 133 Hz with inverter
Stator M-19, M-36, or M-45 Electrical steel laminations. Other lamination grades are available upon request. Hand-wound to ensure balanced and symmetrical windings.
Rotor M-19, M-36, or M-45 Electrical steel laminations. Other lamination grades are available upon request. Die-cast aluminum, copper, or copper alloy rotor construction.

Mechanical Features

Frame Reuland frame 315 through 532 for small motors; NEMA frame 56 through 365; Custom frames also available, consult factory.
Construction Cast iron or cast aluminum frame and end bells. Consult factory for Stainless Steel construction and/or custom design.
Enclosures Totally Enclosed Fan Cooled (TEFC); Totally Enclosed Auxiliary Fan Cooled (A-TEFC); Totally Enclosed Non-Ventilated (TENV); Open Drip Proof (ODP), Open Drip Proof Fan Cooled (DPFC); Open Drip Proof Auxiliary Fan Cooled (A-DPFC)
Bearings Heavy-duty Steel ball, Ceramic ball, or Roller bearings to suit specific applications.
Bearing Lubrication Pre-Lubricated Sealed or Shielded; Re-Greasable Open; Oil Jet
Balance Precision and/or NEMA Standard
Insulation Class B, F, H, and VPI
Mounting Foot or Footless; Precision Bracket Mounting; Conventional C or D Flange; Special and Custom Flanges.
Accessories Encoders, Resolvers, Temperature Sensors, Vibration Mounts and Sensors.

Industries Served

Textile




Applications

Line Synchronization

Metering Pump

Constant Tension

Constant Torque
